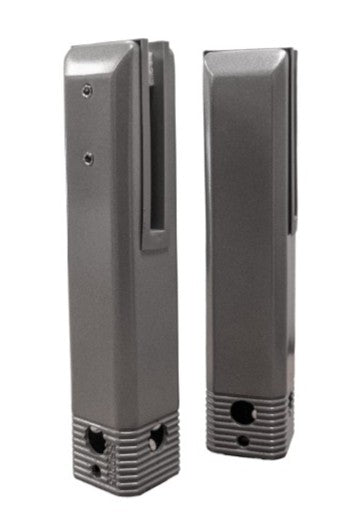

Silver Spigot - No Earthing Required - Core Drill - Square

Non-Conductive Square Spigot | Core Drill | Silver | No Earthing Required

The high-performance structural solution for modern pool fencing—engineered to eliminate electrical earthing requirements with a premium silver finish.

Streamline your next project with the Square Core Drill Spigot in Non-Conductive Silver. Featuring a specialised 3-coat non-conductive finish, this spigot is engineered to meet AS3000 standards without the need for electrical earthing, making it the premier choice for glass pool fencing installed within the 1.2m "wet zone." Constructed from ultra-premium Duplex 2205 stainless steel, this core-drill model provides maximum structural rigidity and a minimalist, "poured-in" look that complements modern architectural palettes.

Product Features

• No Earthing Required: The advanced non-conductive powder coating isolates the metal core, removing the requirement for bonding/earthing by an electrician. This significantly reduces total project costs and installation complexity.

• Duplex 2205 Stainless Steel: Forged from the highest grade of marine stainless steel, providing double the strength and vastly superior corrosion resistance compared to standard 316, specifically for salt-water pool environments.

• Architectural Silver Finish: Features a premium, UV-stabilised silver coating that provides a high-end metallic look, offering a sophisticated alternative to traditional polished or matte black finishes.

• Sleek Core-Drill Installation: Designed to be grouted directly into concrete or stone, providing a rock-solid foundation with a slim, minimalist profile that minimises visible hardware.

• Safety & Standards Compliant: Fully tested and compliant with AS1926.1 for pool safety, ensuring your barrier meets the highest Australian structural and safety requirements.

• Friction-Fit for 12mm Glass: Engineered for 12mm toughened glass panels, using a high-performance friction system that secures the glass without the need for pre-drilled holes.

Specifications & Support

• Material: Duplex 2205 Marine-Grade Stainless Steel.

• Finish: 3-Coat Non-Conductive Silver.

• Design: Square Core Drill (In-Ground Mount).

• Glass Suitability: Suits 12mm Toughened Glass.

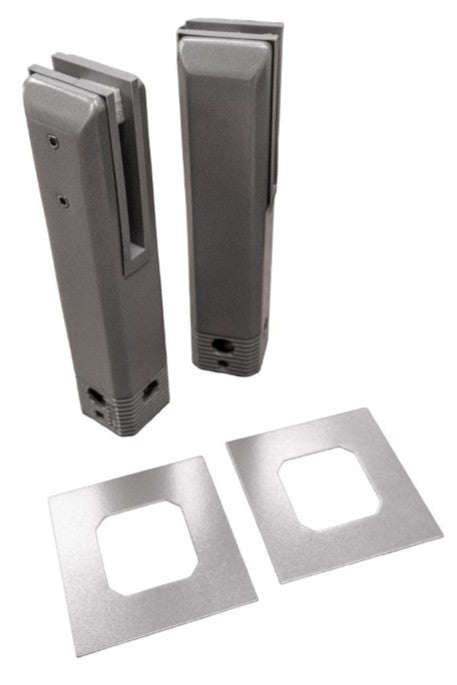

• Installation: Includes a flat, low-profile cover plate to conceal the grout line for a seamless professional finish.

• Warranty: Includes a 3-year replacement warranty.

• Shipping: Free shipping on all hardware orders over $99*

Why Choose the Non-Conductive Silver Square Core Drill Spigot?

This spigot is the ultimate choice for contractors and homeowners looking to combine modern metallic aesthetics with practical safety. By choosing the core-drill method, you achieve the strongest possible glass support with a clean, recessed appearance. The specialised silver coating not only provides a bold architectural statement but also delivers the critical non-conductive properties required to bypass expensive electrical earthing procedures.
